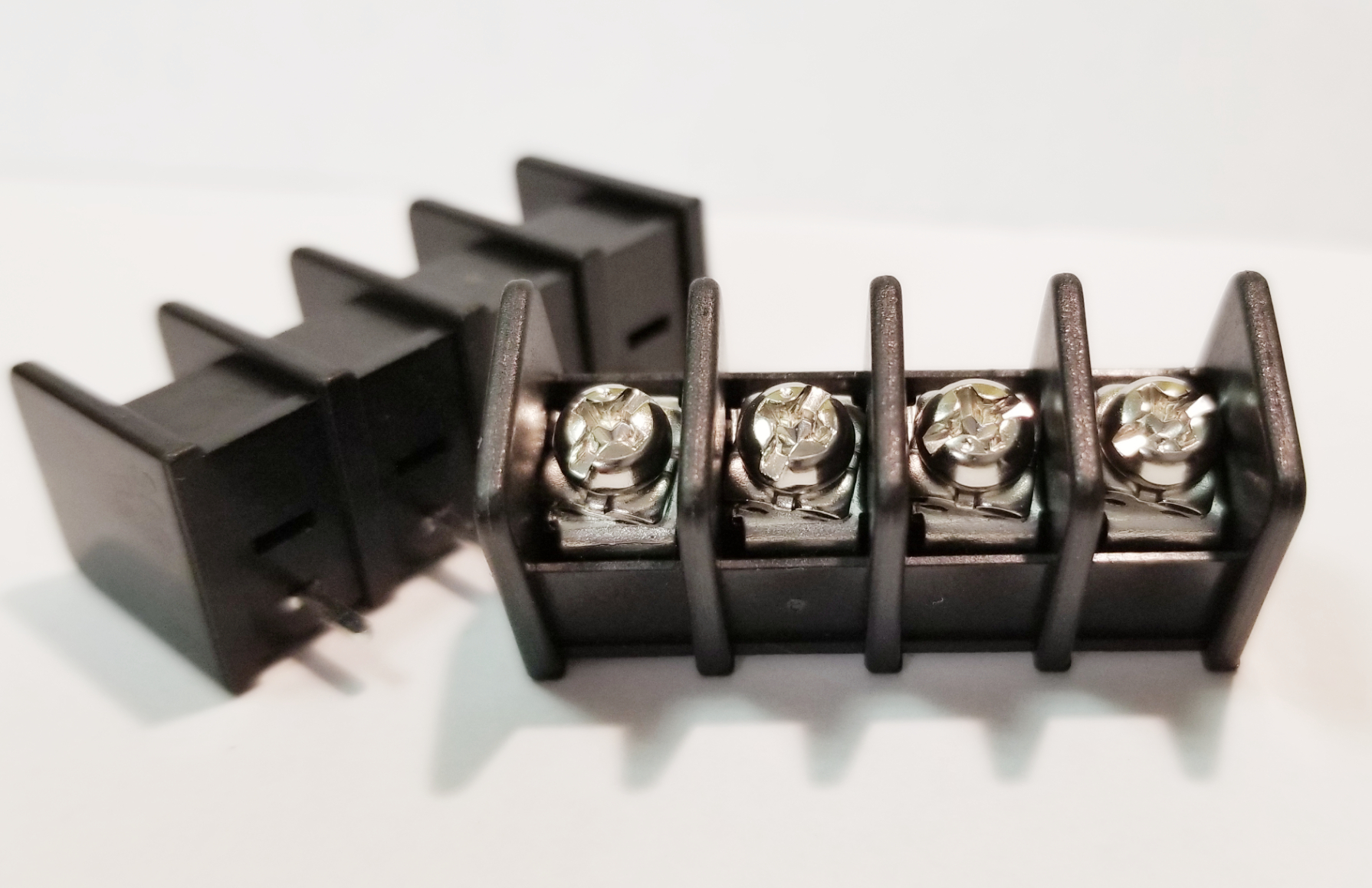

Barrier Type Terminal Blocks – BTS-414

Barrier Type Terminal Blocks – BTS-414

SKU: BTS-414 Categories: , Tag:

Barrier Type Terminal Blocks 8.25mm – Barrier Type Terminal Blocks

Application & Features

Surge Protection
Multimedia Players
Electrical Outlets and Switches to Main
Security
Appliances
Automation Control

Specifications

Flame Rating: UL 94V-0
Insulator Material: Polyamide 66
Torque: 8 In-Lb, M3.0
Wire Size Accepted: 16-22 AWG
Current Rating: 10 Amps/AC250 V
Voltage Rating: AC2000V Min.
Operating Temperature: -55° ~ +95° C
Dielectric Withstanding: AC 2000V
Insulator Resistance: 1000 Megohm min. at 500V DC
Screw : Nickel Plated Steel
Terminal: Tin Brass Plated
Cover: PC Transparent

Options

Green Options: RoHS Complaint
Color: Black
Body Type: W/ Cover

Technical Sheets

Download PDF
Download CAD
