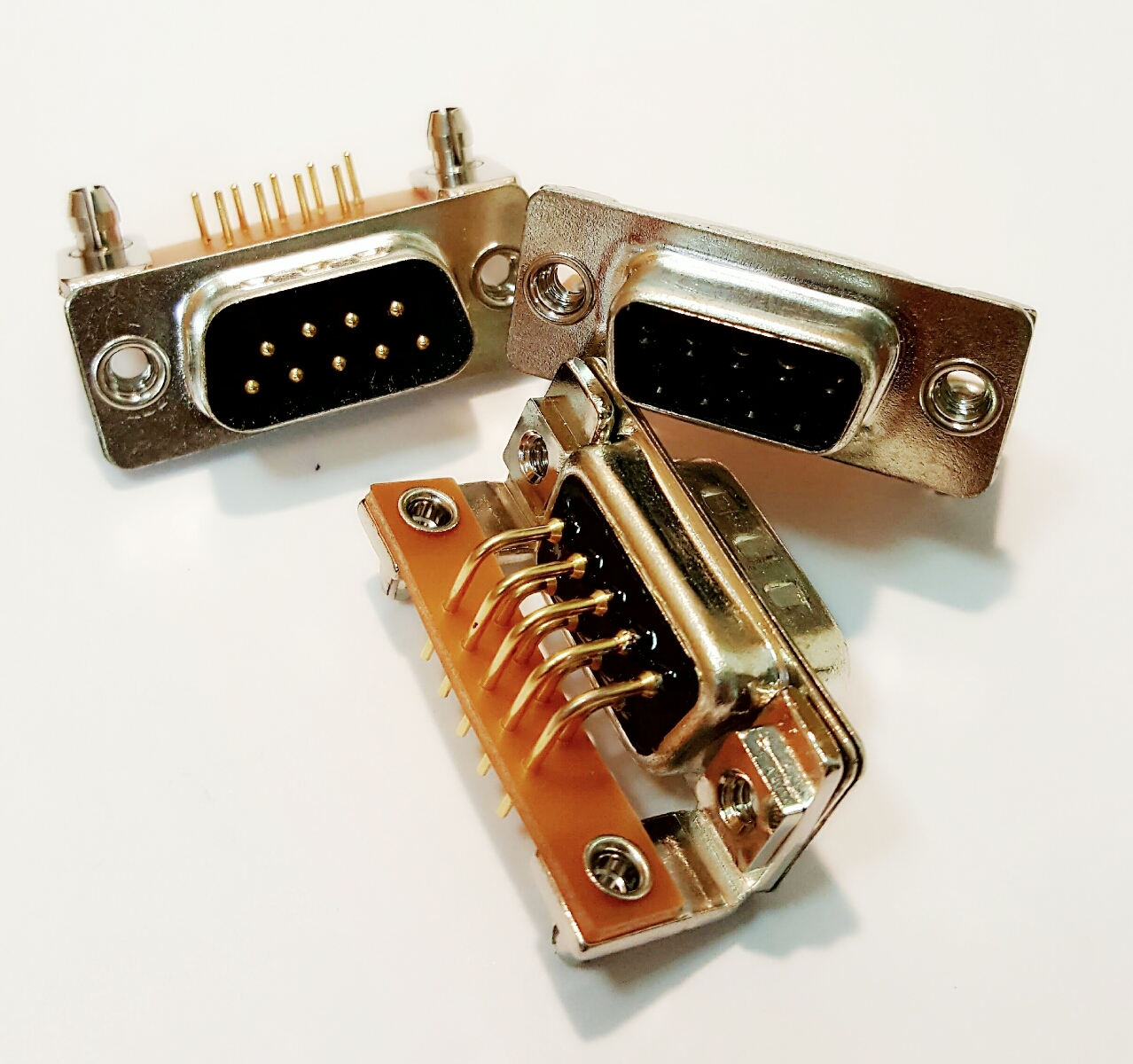

D-Sub with Filter – BPAF

D-Sub with Filter – BPAF

SKU: BPAF Categories: , Tag:

D-Sub with Filter Dual Row – D-Sub with Filter

Application & Features

High Reliability
Industrial Controller Boards
Embedded control units
Electrical Devices
Solar Power


Flame Rating: UL 94V-0
Shell Material: Steel Front/Back
Insulator Material: Thermoplastic, PBT, 30% Glass Filled
Contact Material: Copper Alloy
Contact Area: 1u” Gold
Current Rating: 5 Amps
Contact Resistance: 10m ohms max
Voltage Rating: 300V DC Min.
Insulator Resistance: 1G Ohm min
Operating Temperature: -25° ~ +105° C


Green Options: RoHS Complaint
Mount Type: Right Angle
Gender: Female
Gender: Male
Filter Type: 1300 pF
Filter Type: 1000 pF
Filter Type: 820 pF
Filter Type: 470 pF
Signal Contact: Copper Alloy, Full Flash Gold
Shell Plating: Zinc Chromated
Shell Plating: Tin, Nickel or Steel
Solder Type: Through Hole (TH)
Color: Black
Color: White
Color: Blue
Options: See PDF/CAD for all details

Technical Sheets

Download PDF
Download CAD
