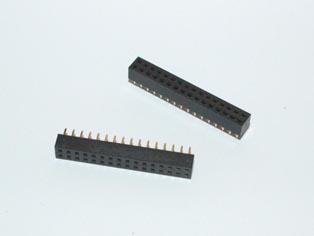

Female Header Dual Socket – PTFZ

Female Header Dual Socket – PTFZ

SKU: PTFZ Categories: , Tags: ,

Female Header Dual Socket Dual Row 2mm – Female Header Dual Socket

Application & Features

Aeuronautics
Public Traffic Lights and Safety
PCB Motherboard
Security
Industrial Controller Boards
Embedded control units

Specifications

Flame Rating: UL 94V-0
Current Rating: 1 Amp
Insulator Resistance: 5000 Megohms min
Contact Resistance: 20m ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -40° ~ +105° C
Max Processing Temp: 230° for 30 seconds (260° for 5 seconds)
Contact Material: Phosphor Bronze
Insulator Material: Polyester – Nylon 6T
Finish: Tin, Gold or Duplex Plating
Finish: Gold Flash All Over
Finish: Gold Flash Contact Area
Finish: Tin Plated on Solder Area

Options

Green Options: High Temp RoHS Compliant
Contact Plating: Tin, Gold and Duplex; Standard Gold Flash
Gender: Female
Insulator Color: Black
Mount Type: Straight
Pin Length : Other Lengths Available
Solder Type: Through Hole (TH)

Technical Sheets

Download PDF
Download CAD
