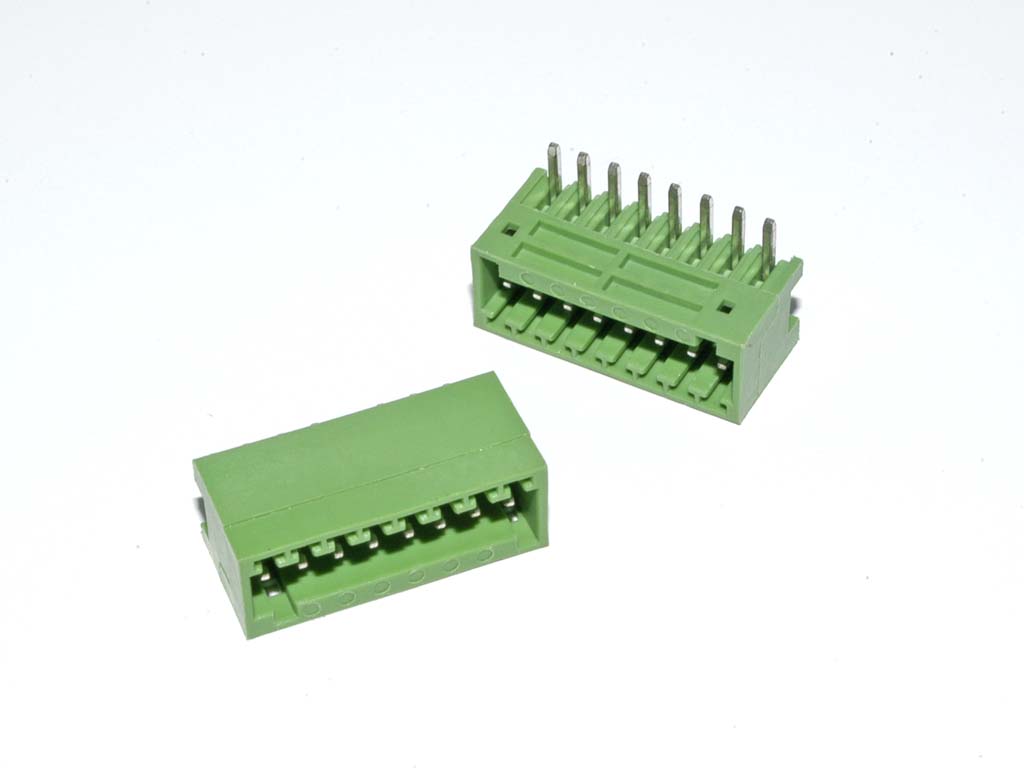

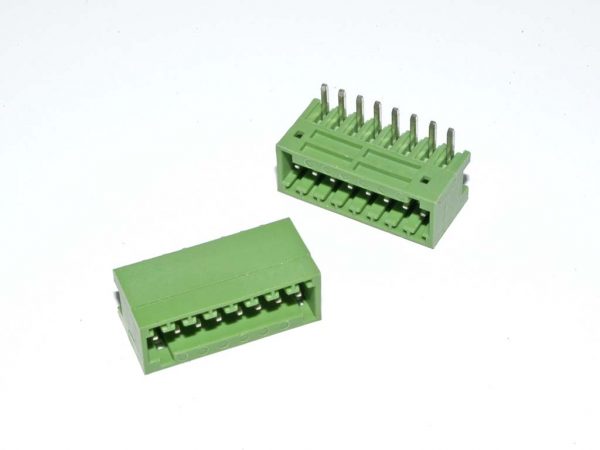

Terminal Block Pluggable Header – RPLJ-2.5

Terminal Block Pluggable Header – RPLJ-2.5

Terminal Block Pluggable Header Single Row 2.5mm – Terminal Block Pluggable Header

Application & Features

Appliances
Electrical Outlets and Switches to Main
Ground Connections
Security
Lighting
Power Converters, Interface Modules and Devices

Specifications

Safety Approval: cRUus
Flame Rating: UL 94V-0
Current Rating: 4 Amps
Voltage Rating: 150V
Withstanding Voltage: 1.3KV
Operating Temperature: -40° ~ +115° C
Max Processing Temp: 250°C +/- 10℃ /5Sec
Contact Material: Copper with Tin Plating
Insulator Material: Thermoplastic

Options

Green Options: Pb<40000ppm
Color: Black (RAL9005), Red (RAL3001/D), Orange (RAL2011/P)
Color: Yellow (RAL1018/A), Green (RAL6018/T), Blue (RAL5015/A)
Color: Grey (RAL7035/D)
Mount Type: Right Angle

Matings

RPGQ-2.5

Technical Sheets

Download Right Angle PDF
Download Straight PDF
Download Right Angle CAD
Download Straight CAD
