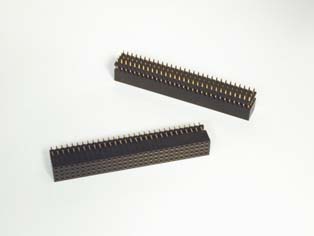

Elevated Female Header PC104 Socket - PQE

Elevated Female Header PC104 Socket – PQE

Elevated Female Header PC104 Socket – PQE

SKU: PQE Categories: , Tags: ,

Elevated Female Header PC104 Socket Quad Row 2mm – Elevated Female Header PC104 Socket

Application & Features

Aeuronautics
Automotive
Ideal for Board Stacking applications
PC104
Industrial Controller Boards
High Profile

Specifications

Flame Rating: UL 94V-0
Current Rating: 1 Amp
Insulator Resistance: 5000 Megohms min
Contact Resistance: 20m ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -40° ~ +105° C
Contact Material: Phosphor Bronze
Insulator Material: Polyester – Nylon 6T
Finish: Tin, Gold or Duplex Plating
Finish: Gold Flash All Over
Finish: Gold Flash Contact Area
Finish: Tin Plated on Solder Area

Options

Green Options: High Temp RoHS Compliant
Contact Plating: Tin, Gold and Duplex; Standard Gold Flash
Pin Length : Other Lengths Available
Mount Type: Straight

Technical Sheets

Download PDF
Download CAD
