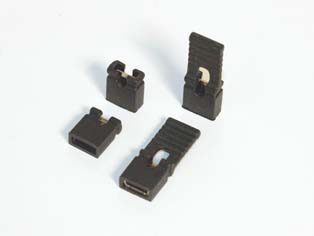

Shunt Jumper Open – PHJ-MB

Shunt Jumper Open – PHJ-MB

SKU: PHJ-MB Categories: , Tag:

Shunt Jumper Open 2.54mm – Shunt Jumper Open

Application & Features

Test & Measurement Equipment
Automation Control
Appliances
Public Traffic Lights and Safety
Point of Sale (POS)
Robotics

Specifications

Flame Rating: UL 94V-0
Current Rating: 1 Amp
Voltage Rating: 30V RMS Max.
Dielectric Withstanding: AC 500V
Insulator Resistance: 500 Megohms min (500V DC for 1 minute)
Contact Resistance: 20m ohms max
Operating Temperature: -45° ~ +105° C
Insertion Force: 0.5Kgf/pin MAX.
Withdrawal Force: 0.1Kgf/pin MIN.

Options

Green Options: RoHS Complaint
Contact Plating: Gold
Color: Black, Yellow, Blue, White, Red, Green
Shunt Height: 6.0mm Open

Matings

LHY LHZ

Technical Sheets

Download PDF
Download CAD
