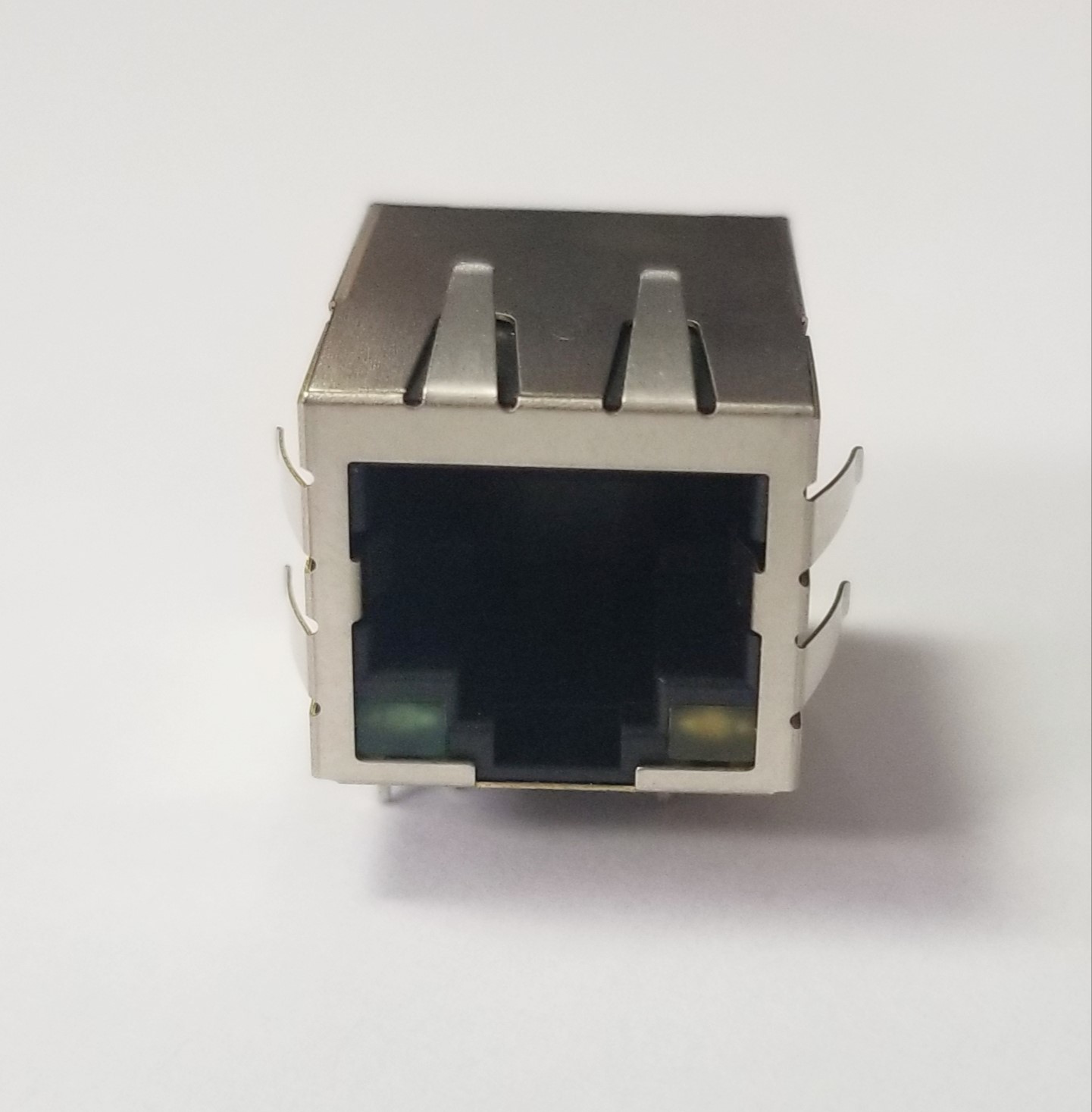

Modular Jack, Type F4, 8P8C Transformer 100MB – MJA-110VD1-FG

Modular Jack, Type F4, 8P8C Transformer 100MB – MJA-110VD1-FG

SKU: MJA-110VD1-FG

Modular Jack, Type F4, 8P8C Transformer 100MB Modular Jack, Type F4, 8P8C Transformer 100MB

Specifications

Housing : High Temp Plastic
Contact Material: Phosphor Bronze
Current Rating: 1.5 Amps
Insulator Resistance: 1000 Megohm min
Contact Resistance: 20m ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -55° ~ +105° C
Max Processing Temp: 260℃ ±5℃ /5Sec
Conveyor Speed: 80cm/min.Green Options: RoHS Complaint
Type: Stamped Pin
Color: Black
Contact Plating: Selective Gold

Technical Sheets

Download PDF
Download CAD
