Solid connector solutions for the ever-changing electronic Industry.

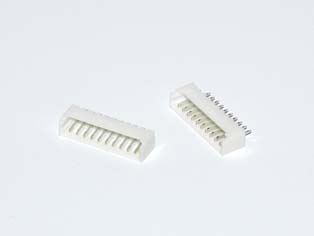

Wafer Connecor – FWC

Wafer Connecor – FWC

SKU: FWC Categories: , Tag:

Wafer Connecor 1.25mm – Wafer Connecor

Application & Features

High Power
High Density Harness Application
Exercise Equipment
Telecommunications

Specifications

Flame Rating: UL 94V-0
Voltage Rating: 125V AC/DC
Current Rating: 1 Amp
Insulator Resistance: 100 Megohms min
Contact Resistance: 20m ohms max
Dielectric Withstanding: AC 250V
Operating Temperature: -40° ~ +85° C
Contact Material: Brass
Insulator Material: Nylon 66
Finish: Tin Plating

Options

Green Options: High Temp RoHS Compliant
Contact Plating: Tin
Mount Type: Straight

Technical Sheets

Download PDF
Download CAD
