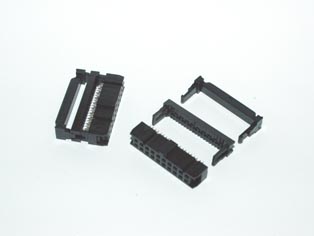

Flat Cable IDC – FTF

Flat Cable IDC – FTF

SKU: FTF Categories: , Tags: ,

Flat Cable IDC Dual Row 2mm – Flat Cable IDC

Application & Features

Industry Standard
Low voltage applications
Insulation-piercing contacts
Telecommunications
Networking and Computer Cables
Ideal for interconnecting PCB’s in a permanent flat cable transition

Specifications

Flame Rating: UL 94V-0
Current Rating: 1 Amp
Insulator Resistance: 3000 Megohms min
Contact Resistance: 30m ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -40° ~ +105° C
Contact Material: Phosphor Bronze
Insulator Material: Polyester – PBT
Finish: Gold and Tin

Options

Green Options: RoHS Complaint
Polarization: Locating Peg
Polarization: None
Packaging: Bulk
Color: Black

Technical Sheets

Download PDF
Download CAD
