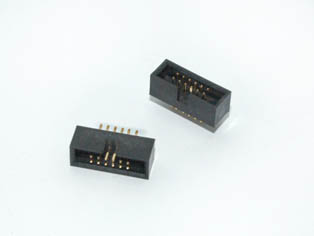

Shrouded Box Header DIP – POSD

Shrouded Box Header DIP – POSD

SKU: POSD Categories: , Tags: ,

Shrouded Box Header DIP Dual Row 1.27mm – Shrouded Box Header DIP

Application & Features

Automation Control
Embedded control units
PC104
PCB Motherboard
Motor & Power Controls
Security

Specifications

Flame Rating: UL 94V-0
Current Rating: 1 Amp
Insulator Resistance: 5000 Megohms min
Contact Resistance: 20m ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -40° ~ +105° C
Contact Material: Copper Alloy
Insulator Material: High Temperature Thermoplastic
Insulator Material: Nylon-6T
Finish: Gold Flash Contact Area
Finish: Tin Plated on Solder Area

Options

Green Options: RoHS2 Directive 2011/65/EU
Insulator Color: Black
Contact Plating: Tin, Duplex Tin/Gold, Gold
Gender: Male
Mount Type: Vertical Straight
Packaging: Tray
Polarization: Keyed
Solder Type: Through Hole (TH)

Technical Sheets

Download PDF
Download CAD
