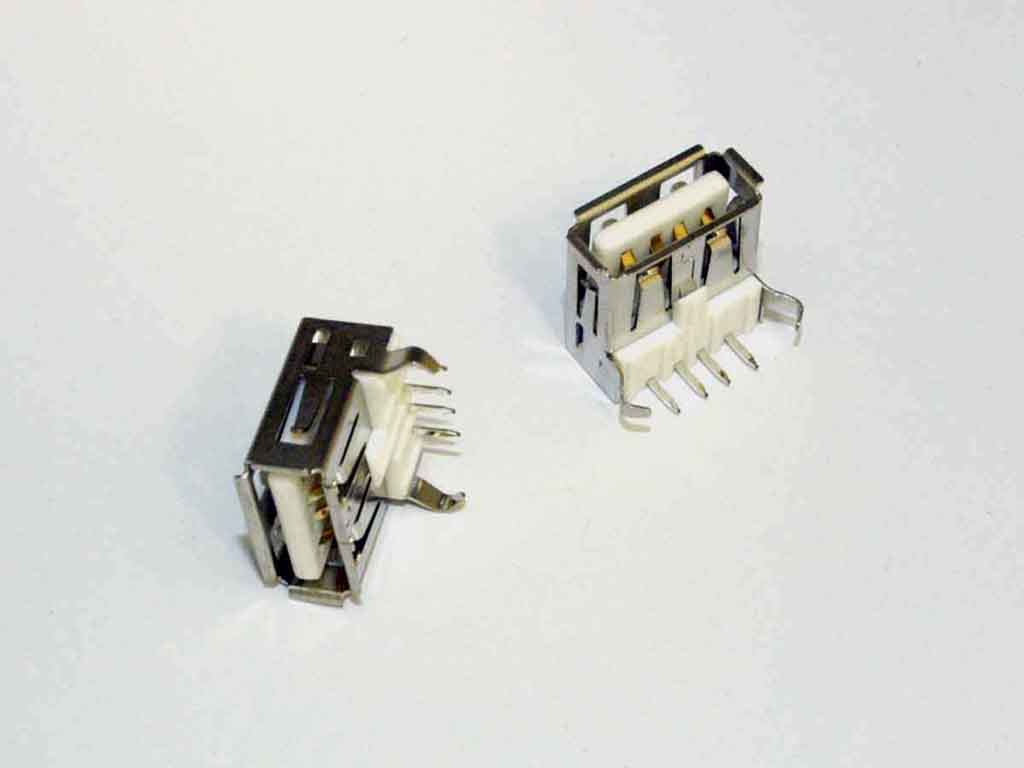

USB Type A 2.0 – BPOA-101

USB Type A 2.0 – BPOA-101

SKU: BPOA-101 Categories: , Tags: ,

USB Type A 2.0 Single Row 2mm – USB Type A 2.0

Application & Features

Data/Communications
USB 2.0 R/W 480 signaling rate of 480 megabits per second
USB-IF Association
Industry Standard

Specifications

Flame Rating: UL 94V-0
Current Rating: 1 Amp
Insulator Resistance: 1000 Megohm min
Contact Resistance: 30m ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -55° ~ +105° C
Contact Material: Copper Alloy
Shell Material: Copper Alloy
Insulator Material: High Temperature Thermoplastic
Finish: Gold Flash Contact Area
Mating Force: 4.0 Kg. max
UnMating Force: 0.7 Kg. max

Options

Green Options: RoHS Complaint
Type: A Type USB
Mount Type: Right Angle
Gender: Female
Color: Black, White
Contact Plating: Gold Flash – 30u

Technical Sheets

Download PDF
Download CAD
