Products

Solid connector solutions for the ever-changing electronic Industry.
- TBSC

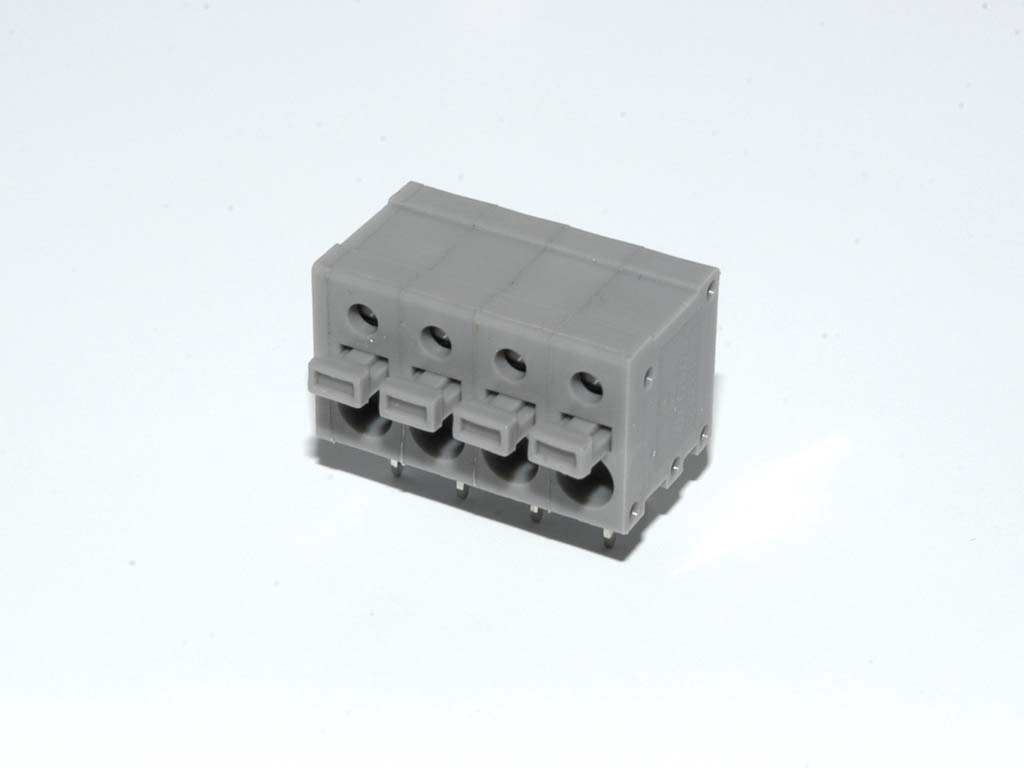

TBSC

– TBSC

SKU: TBSC Categories: , Tag:

5mm –

Specifications

Safety Approval: cRUus
Voltage Rating: 300V AC
Current Rating: 8 Amps
Wire Strip Length: 6-7mm
Withstanding Voltage: 1.6KV
Wire Size Accepted: 16-26 AWG
Operating Temperature: -40° ~ +115° C
Max Processing Temp: 250°C +/- 10℃ /10Sec
Latch Material: Stainless Steel
Contact Material: Brass with Tin Plating
Insulator Material: High Temperature ThermoplasticGreen Options: RoHS (lead<1000ppm) in Copper Alloy
Color: Black (RAL9005), Red (RAL3001/D), Green (RAL6018/T)
Color: Grey (RAL7035/D), White (RAL1102)
Color: Multiple Colors

Technical Sheets

Download PDF
Download CAD
