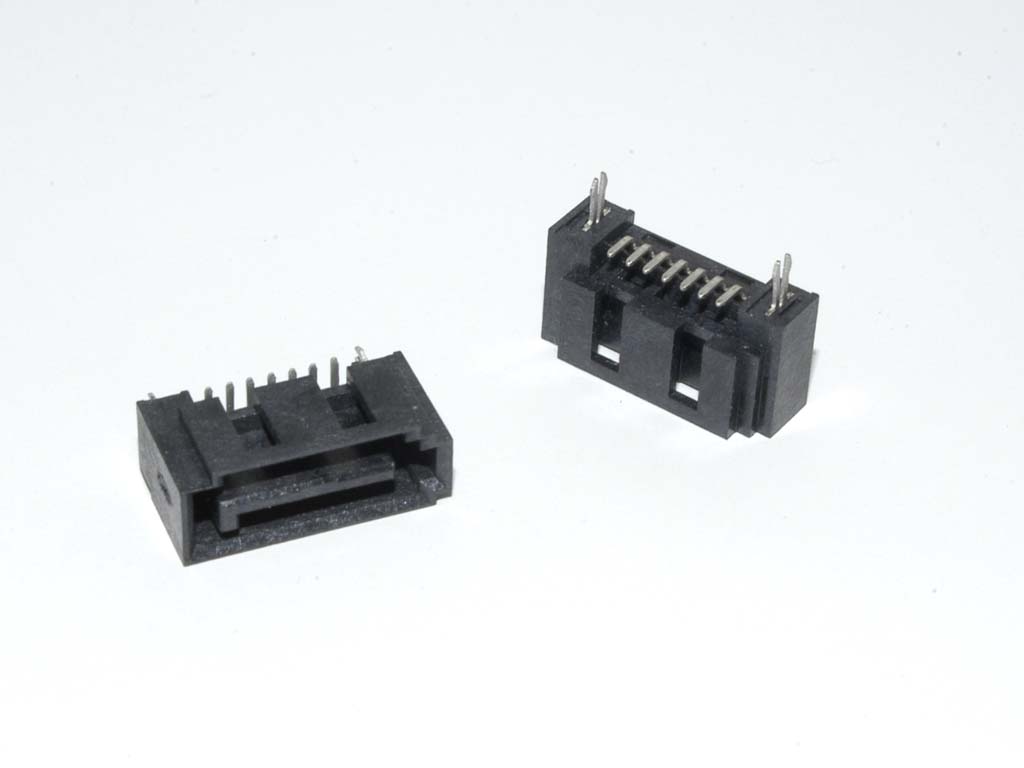

Shrouded with open GAFF Latch – SATS

Shrouded with open GAFF Latch – SATS

SKU: SATS Categories: , Tags: ,

Shrouded with open GAFF Latch Single Row 1.27mm – Shrouded with open GAFF Latch

Application & Features

Mass Storage
Solid State Drives
Data Transfer
Servers and Personal Computer
Mobile Devices
Embedded control units

Specifications

Flame Rating: UL 94V-0
Current Rating: 1.5 Amps
Insulator Resistance: 1000 Megohm min
Contact Resistance: 30m ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -55° ~ +105° C
Contact Material: Brass
Boardlock Material: Brass
Insulator Material: Polyester – LCP +30% Glass Filled
Finish: Gold Plating on Contact, Tin on Solder Tail & Boardlock

Options

Green Options: High Temp RoHS Compliant
Contact Plating: Selective Gold
Mount Type: Shrouded-Vertical Mount
Color : Oarange
Color: Black

Technical Sheets

Download PDF
Download CAD
