Solid connector solutions for the ever-changing electronic Industry.
- RPEU-5.08

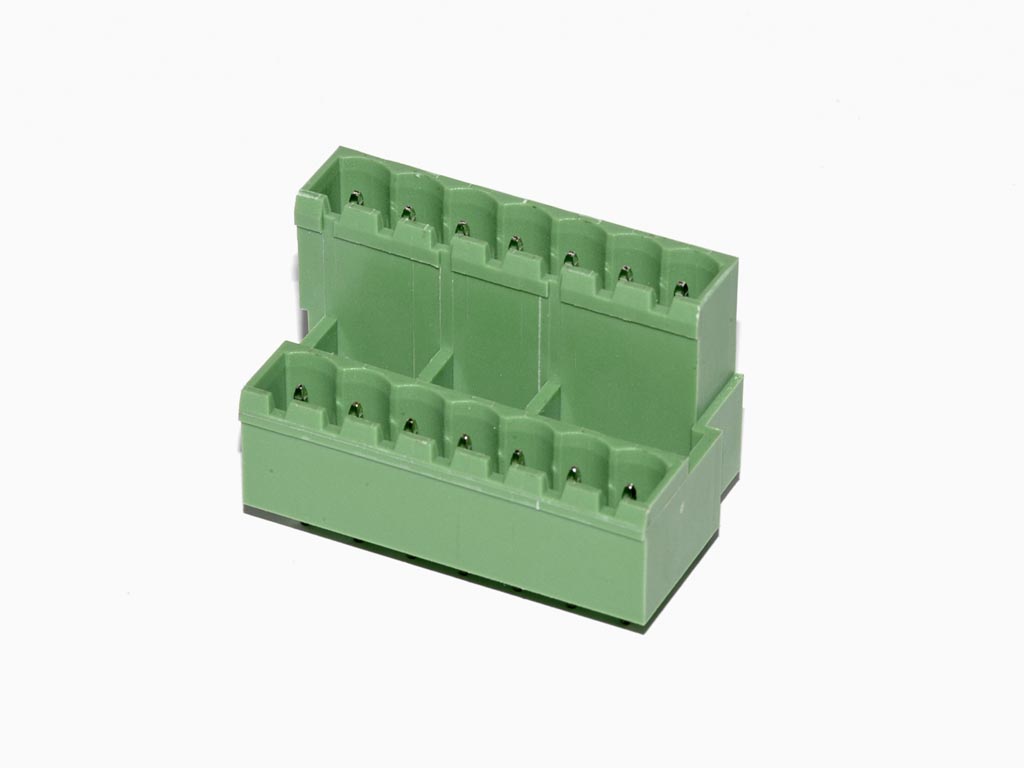

Terminal Block Pluggable Header Dual Row/Level – RPEU-5.08

Terminal Block Pluggable Header Dual Row/Level – RPEU-5.08

SKU: RPEU-5.08 Categories: , Tags: ,

Terminal Block Pluggable Header Dual Row/Level Dual Row 5.08mm – Terminal Block Pluggable Header Dual Row/Level

Specifications

Safety Approval: cRUus
Flame Rating: UL 94V-0
Voltage Rating: 300V AC
Current Rating: 10 Amps
Withstanding Voltage: 1.6KV
Operating Temperature: -40° ~ +115° C
Contact Material: Copper with Tin Plating
Max Processing Temp: 250°C +/- 10℃ /5Sec
Flange Screw: Brass, M2.5Green Options: RoHS (lead<4%) in Copper Alloy
Mounting Type: Pluggable
Color: Black (RAL9005), Red (RAL3001/D), Orange (RAL2011/P)
Color: Yellow (RAL1018/A), Green (RAL6018/T), Blue (RAL5015/A)
Color: Gray (RAL7035/D)
Mounting Type: Pluggable
Mount Type: Right Angle
Solder Type: Through Hole (TH)

Technical Sheets

Download PDF
Download CAD
