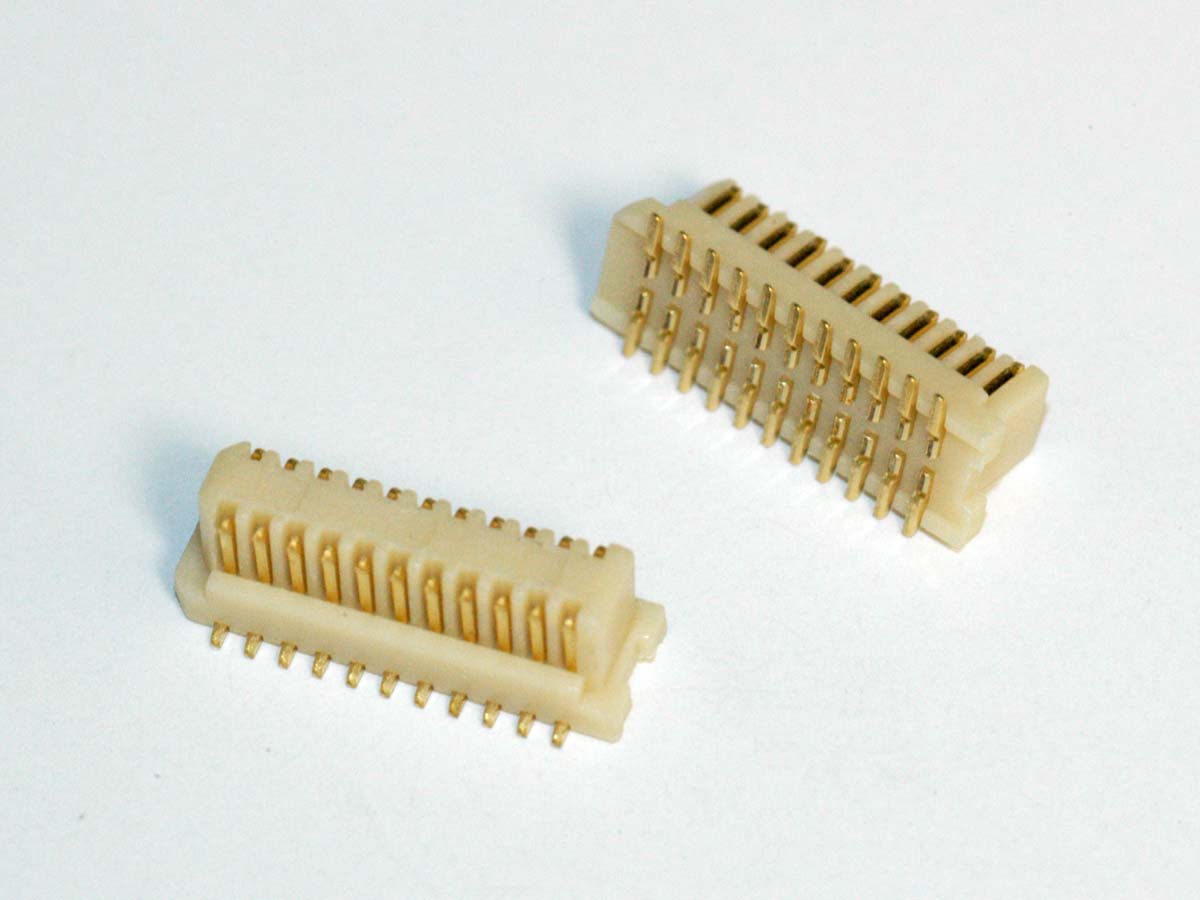

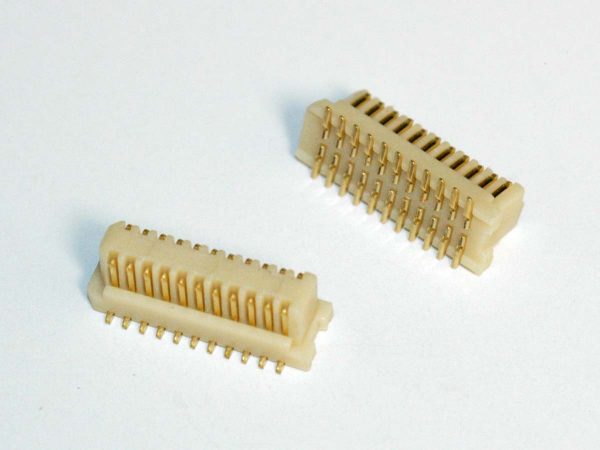

Micro Pitch Interconnect Plug – MPA5

Micro Pitch Interconnect Plug – MPA5

SKU: MPA5 Categories: , Tags: ,

Micro Pitch Interconnect Plug Dual Row 0.5mm – Micro Pitch Interconnect Plug

Application & Features

Parallel Board Stacking
Mobile Devices
Home Automation
Measuring Devices
Electrical Devices
Handheld Terminals

Specifications

Flame Rating: UL 94V-0
Current Rating: 8 Amps
Insulator Resistance: 500 Megohms min
Voltage Rating: 125V AC
Dielectric Withstanding: AC 1500V
Operating Temperature: -40° ~ +105° C
Max Processing Temp: 250℃ ±5℃ /5Sec
Contact Material: Brass with Tin Plating

Options

Green Options: RoHS2 Directive 2011/65/EU
Gender: Male
Contact Plating: Tin, Gold Flash 3u-30u, Duple 3u-30u
Locating Peg: with or without
Packaging: Tube (w/o Film)
Packaging: Reel(w/o Film)
Packaging: Film & Reel
Color: Black
Color: Natural
Solder Type: Surface Mount (SMT)

Technical Sheets

Download PDF
Download CAD
