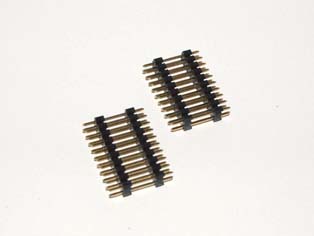

Board Stack Dual Pin Header – LK

Board Stack Dual Pin Header – LK

SKU: LK Categories: , Tags: ,

Board Stack Dual Pin Header Dual Row 2.54mm – Board Stack Dual Pin Header

Application & Features

Measuring Devices
Test & Measurement Equipment
Data/Communications
Multiple Height Options
Low voltage applications
Motor & Power Controls

Specifications

Flame Rating: UL 94V-0
Current Rating: 3 Amps
Insulator Resistance: 5000 Megohms min
Dielectric Withstanding: AC 500V
Operating Temperature: -40° ~ +105° C
Max Processing Temp: 260°C +/- 10℃ /10Sec
Contact Material: Brass
Contact Material: Copper Alloy
Insulator Material: Polyester – Nylon 6T
Finish: Tin, Gold or Duplex Plating
Finish: Gold Flash Contact Area
Finish: Tin Plated on Solder Area

Options

Green Options: High Temp RoHS Compliant
Contact Plating: Tin, Gold and Duplex; Standard Gold Flash
Gender: Male
Insulator Color: Black
Mount Type: Straight
Solder Type: Through Hole (TH)
Packaging: Bulk
Pin Length : Other Lengths Available

Technical Sheets

Download PDF
Download CAD
