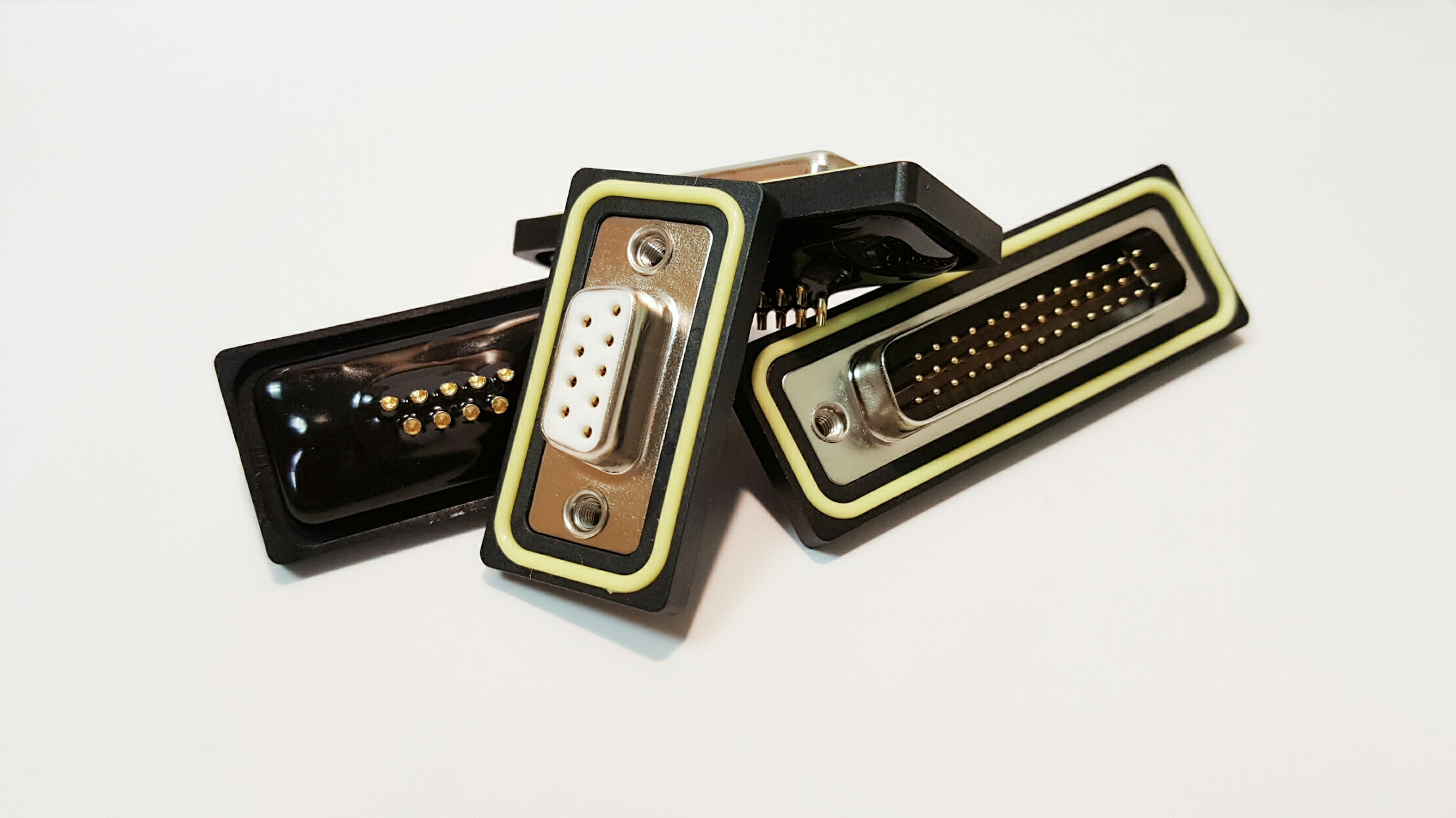

D-Sub Solder Type – DWPW

D-Sub Solder Type – DWPW

SKU: DWPW Categories: , Tag:

D-Sub Solder Type Dual Row – D-Sub Solder Type

Application & Features

IP67 (IEC60529)
Solar Power
Public Traffic Lights and Safety
Harsh Environments
Water Resistant

Specifications

Flame Rating: UL 94V-0
Protection Certification: IP67 (IEC60529)
Contact Underplate: 50u“~150 u“ Ni
Operational Voltage: 250 VAC Max
Current Rating: 3 Amps
Contact Resistance: 15m ohms min 500 VDA
Dielectric Withstanding: AC 1000VAC/Minute
Operating Temperature: -55° ~ +105° C
Insulator Material: Thermoplastic
Contact Material: Copper Alloy

Options

Green Options: RoHS2 Directive 2011/65/EU
Mount Type: Solder
Gender: Female
Gender: Male
Sealant: Epoxy-Resin
Rivet Contact: 50u”-150u” Nickel
Rivet Plating: Copper Alloy
O-Ring: Silicon (Toshiba 221-5U)
Color: Black
Shell Plating: Steel
Contact Plating: Gold
Packaging: Tray

Matings

DWPH DWPC

Technical Sheets

Download Female PDF
Download Male PDF
Download Female CAD
Download Male CAD
