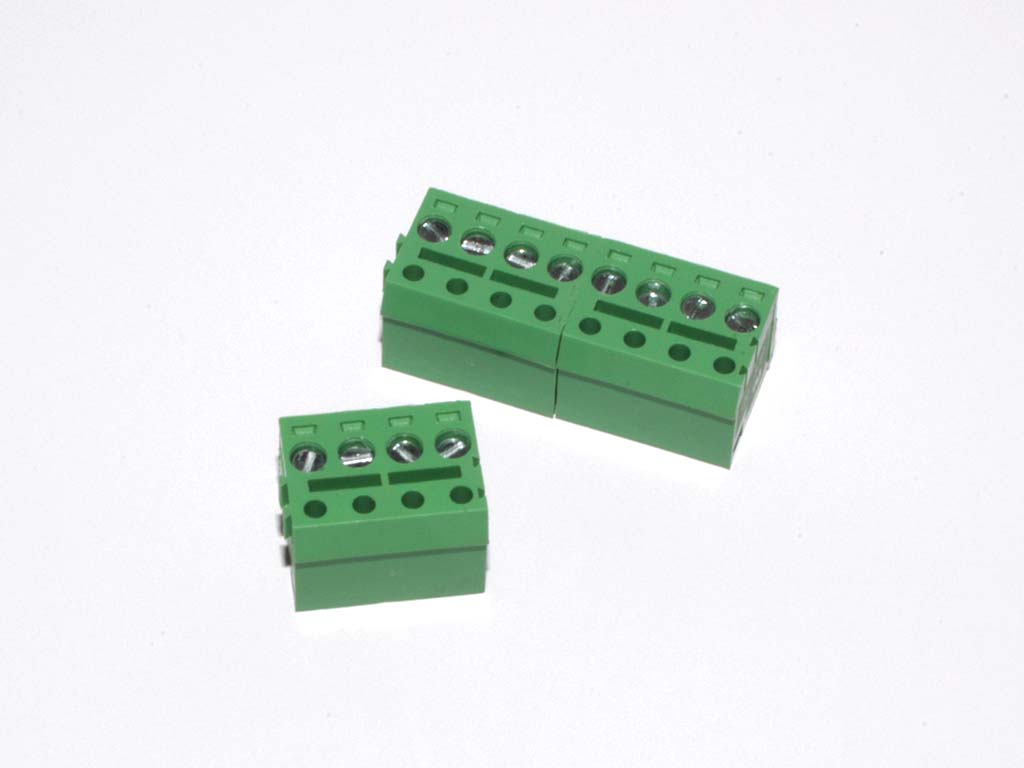

Terminal Block Removable Pluggable Plug – RPGG-3.81

Terminal Block Removable Pluggable Plug – RPGG-3.81

SKU: RPGG-3.81 Categories: , Tags: ,

Terminal Block Removable Pluggable Plug Single Row 3.81mm – Terminal Block Removable Pluggable Plug

Application & Features

Data/Communications
Embedded control units
HVAC equipment and controls
Home Automation
Security
Industrial Equipment

Specifications

Safety Approval: cRUus
Flame Rating: UL 94V-0
Current Rating: 10 Amps
Voltage Rating: 300V AC
Withstanding Voltage: 1.6KV
Operating Temperature: -40° ~ +115° C
Contact Material: PhBz, Tin Plated
Terminal Screw Material: Steel, Zinc Plated “-” Slot Type
Insulator Material: Thermoplastic
Wire Strip Length : 5-6mm
Wire: Stranded/Solid (AWG) 16-28
Torque: 1.7 in-lb/M3
Clamp: Brass (CuZn) Ni Plated

Options

Green Options: Pb<40000ppm
Mounting Type: Pluggable
Color: Black (RAL9005), Red (RAL3001/D), Orange (RAL2011/P)
Color: Yellow (RAL1018/A), Green (RAL6018/T), Blue (RAL5015/A)
Color: Gray (RAL7035/D)

Technical Sheets

Download PDF
Download CAD
