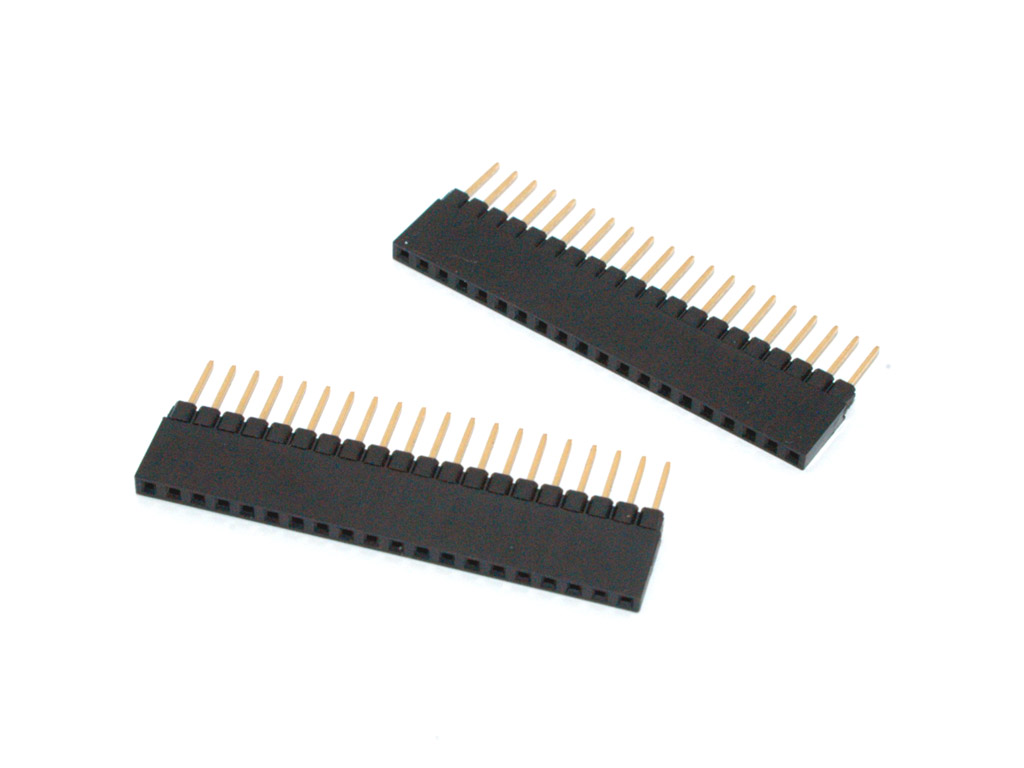

Elevated Socket Header – QPHFY

Elevated Socket Header – QPHFY

SKU: QPHFY Categories: , Tags: ,

Elevated Socket Header Single Row 2.54mm – Elevated Socket Header

Application & Features

PCB Motherboard
High Mating Cycles
Data/Communications
High Shock and Vibration
Networking and Computer Cables
Robotics

Specifications

Flame Rating: UL 94V-0
Current Rating: 3 Amps
Insulator Resistance: 5000 Megohms min
Contact Resistance: 20m ohms max
Dielectric Withstanding: AC 500V
Operating Temperature: -40° ~ +105° C
Max Processing Temp: 230° for 30 seconds (260° for 5 seconds)
Contact Material: Phosphor Bronze
Insulator Material: Polyester – Nylon 6T
Finish: Gold Flash Full Pin

Options

Green Options: High Temp RoHS Compliant
Mount Type: Straight
Contact Plating: Tin, Gold Flash 3u-30u, Duple 3u-30u
Color: Black
Gender: Female
Packaging: Tube

Matings

LHY

Technical Sheets

Download PDF
Download CAD
